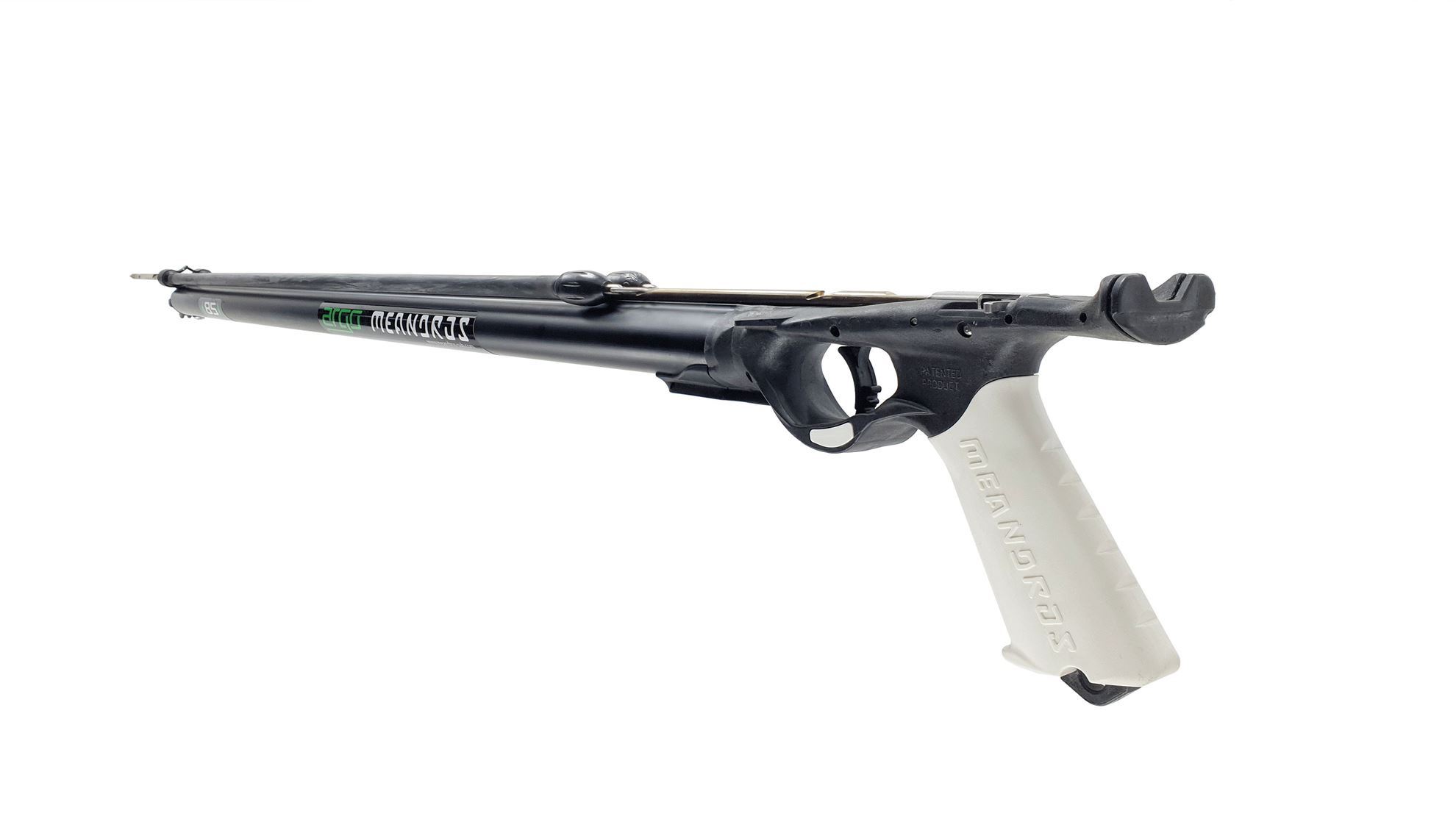

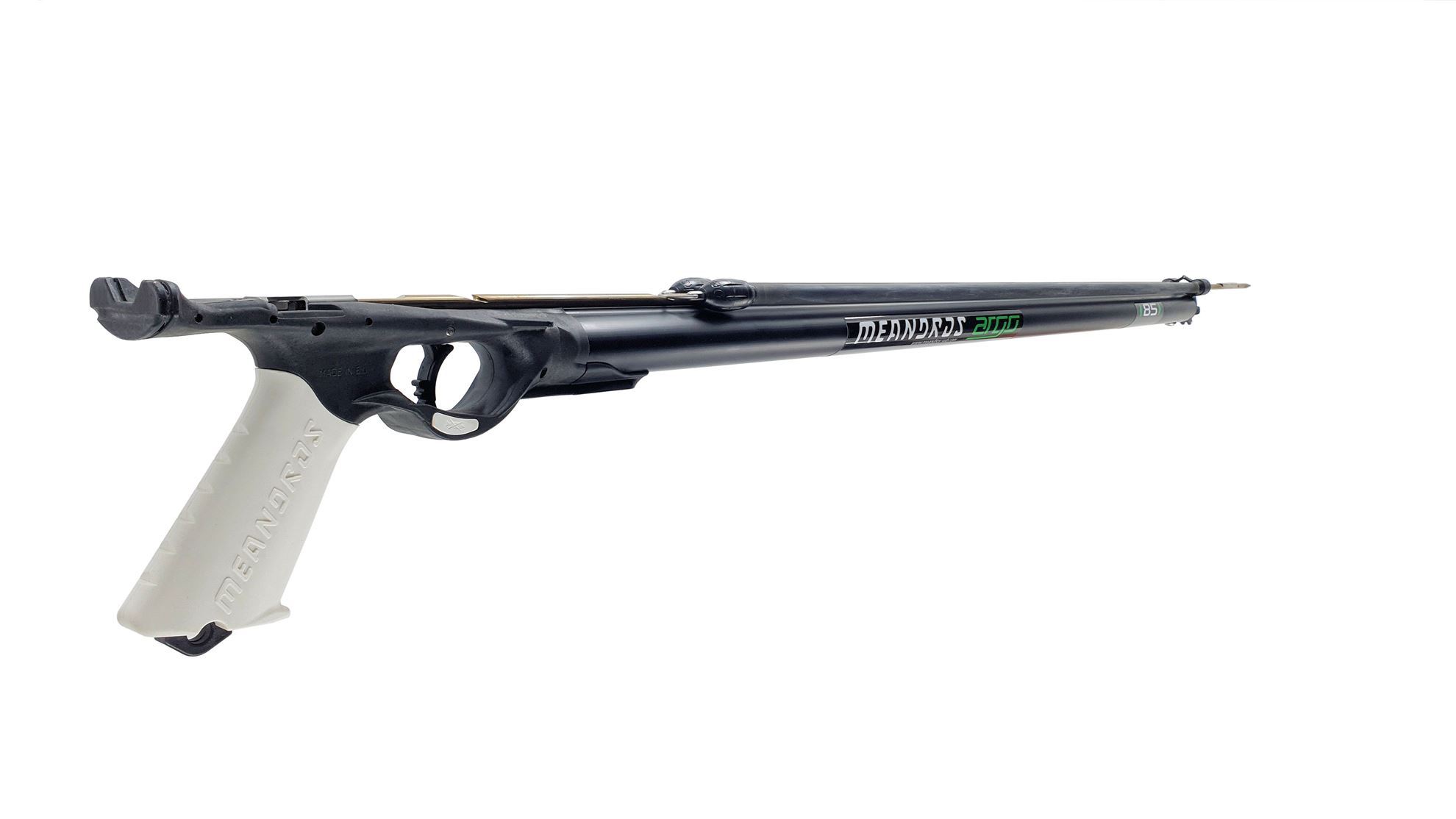

B 32 DRAGON
Manufacturer:
• Tube material: Aeronautical aluminum alloy.
• Tube dimensions: 29.0mm ID & 32.0mm OD.
• Tube cut shape: Round with supporting extensions / multi sided.
• Wall thickness: 1.5mm - 2,1mm.
• Buoyancy: +4,16gr / cm.
• Ballasting ability: Yes.
• Rail type/height: V type embedded / 16mm from center of pipe.
• Pipe protection: Anodized.
• Color: Black mat.
• Handle: Atladic Leader B-28.
• Handle profile: Extremely low.
• Mechanism: Inverted inox with plastic trigger, innovative design.
• Line releasse: Ambidextrous horizontal.
• Handle adjustment in the pipe: Male.
• Sealing: O-ring 21x4.5.
• Grip: Ambidextrous,white, anatomic, non-slip, antiallergic, detachable.
• Safety: Recessed in the trigger guard.
• Loading pad: With excellent line of sight.
• Muzzle: Dragon id 29
• Muzzle type: Close for pair srew bands..
• Rubbers: 17.5mm black latex / 1 pair srew rubbers. vector
• Wishbone: Articulated threaded, hydrodynamic, spring end.
• Shaft: 6.5mm / zarezi / single barb.
The B-32 is the robust and the more evolved line of spearguns that the company has to offer that responds to the needs of the evolving spearo and demanding hunters that are not satisfied with simple tubular spearguns.
Particular attention has been paid to all parameters that make up a manufactural quality product that is easy-to-use and offers unprecedented ballistic performance levels. It has been studied to overcome the problems and weaknesses of common aluminum or carbon tubular spearguns, such as intense recoil, deformations, buoyancy and offers long-lasting reliability and excellent operation of all its mechanical parts, etc.

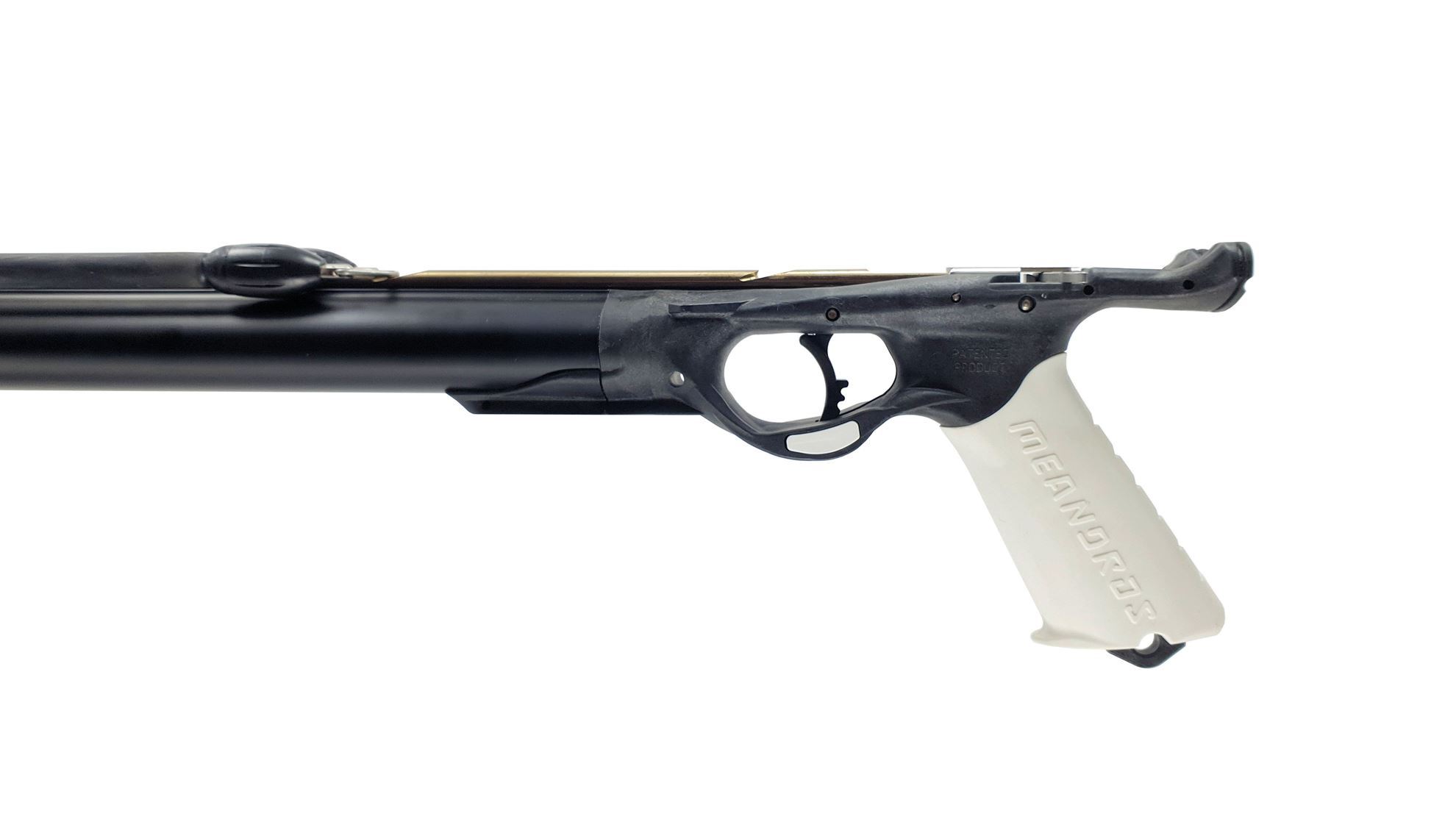

It consists of the international top advanced & ergonomic LEADER handle with a particularly low profile with a non-slip, anatomic grip, loading heel with exceled view shooting image , inverted inox trigger mechanism with minimal weight and sensitivity. The plastic triggered extends the loading length by +9.5 cm it has an ambidextrous mechanical side line release, reduced friction guide, water balance, ambidextrous monofilament guide, multi-purpose bore, etc.

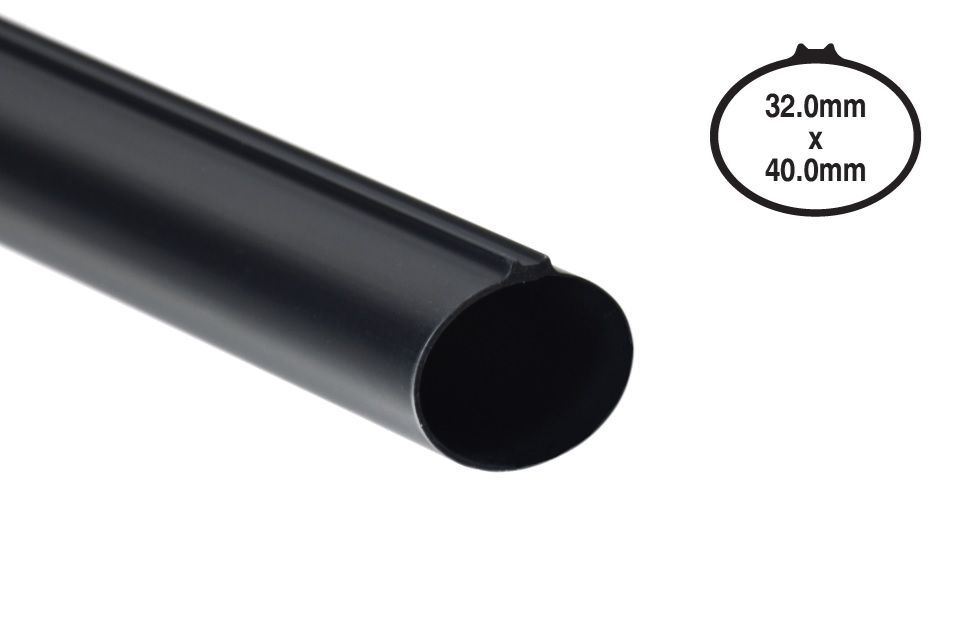

The multisided tubular barrel is made of aluminum alloy with an integrated trapezium shaped, hydroplaning guide, which delivers stiffness with a minimum weight of positive buoyancy +4.16 gr / cm. Complete anode protection per piece and not per bar. The thickness of the barrel wall perimetrically for greater stiffness is uneven (1.50mm - 2.10mm depending on the stress point) overcoming the rest of the circular tubes one might find in the market.
Stiffness coupled with the absence of recoil, achieves shot precision and top ballistic performance at a distance from the tip of the spear to 5 times the length of the barrel. Much of the energy from the bands to the rod is absorbed and is lost in the recoil when the mass of the barrel and gun is generally disproportionate to the setting. The B - 32 is a sturdy and robust rig that guarantees rigidity with minimal energy loss from recoil. Similar performance with shot quality cannot be obtained from a common barrel of 28x1mm aluminum or carbon 30 × 2 mm. In order to maintain stiffness out of barrel too, attention has been given to the grip / muzzle attachment points of the barrel in terms of geometry and static materials, so that at high load the deformation at the connection points is almost zero.

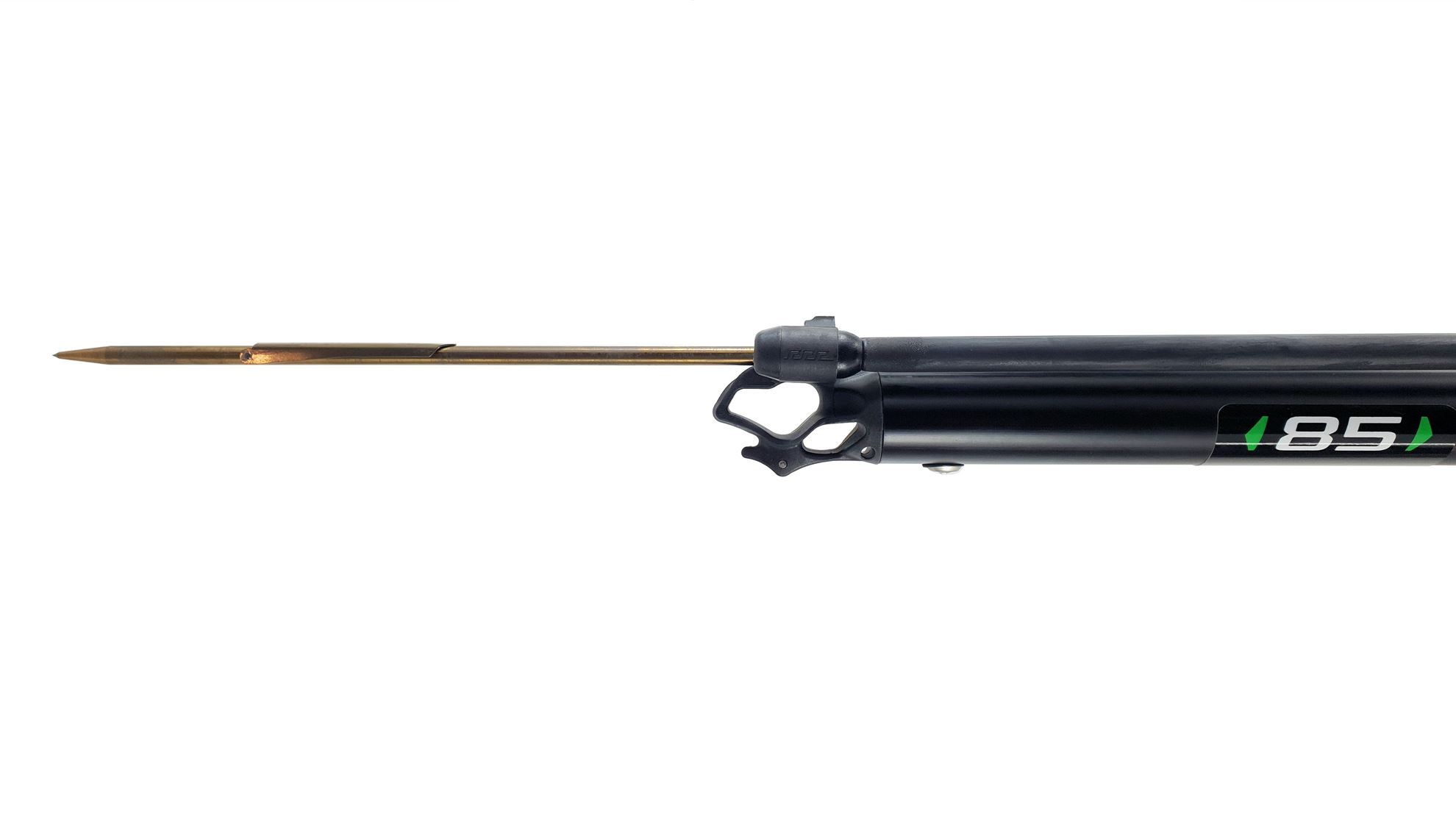

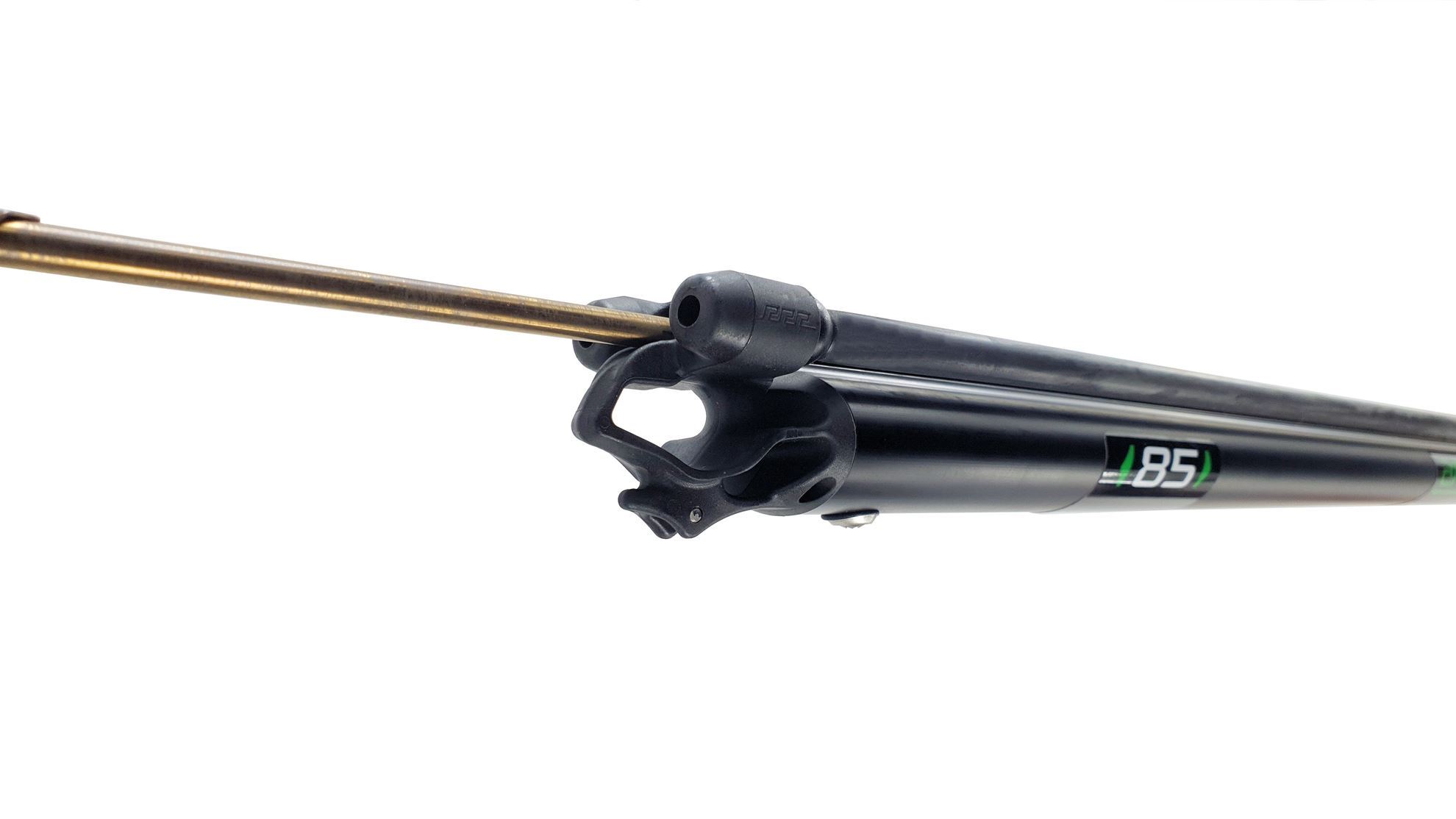

The close type innovative shape dragon muzzle, modern elegant innovative minimal design for M14 x1.0 threaded tires offers:
• Maximum / optimal happiness.
• Excellent shooting image.
• Excellent agility.
• Absolute ergonomics.
• High reliability.
• Amazing ease of use.
• Wide range of shaft / rubber combinations.
• Minimum weight.
Due to a special formation, it leads the shaft with the least energy losses. It donates the dead length lost by the fittings so that the useful length of rubber along the barrel remains clear. Inside the threads, water is prevented from being trapped in order to avoid the phenomenon of rubber rot. Inside there is a chamber that can accept a corresponding buoyancy counterweight. The arch point also allows the use of a shaft with small sharks fins. The tiny but high-strength rope guide and other points related to cord management very neatly, easily and conveniently arrange the lengths of rope very close to the barrel so that they do not stick out preventing tangles and wobbles. Made of durable high-quality material to withstand even the most difficult conditions.
Its base can adopt all the reels that we produce.

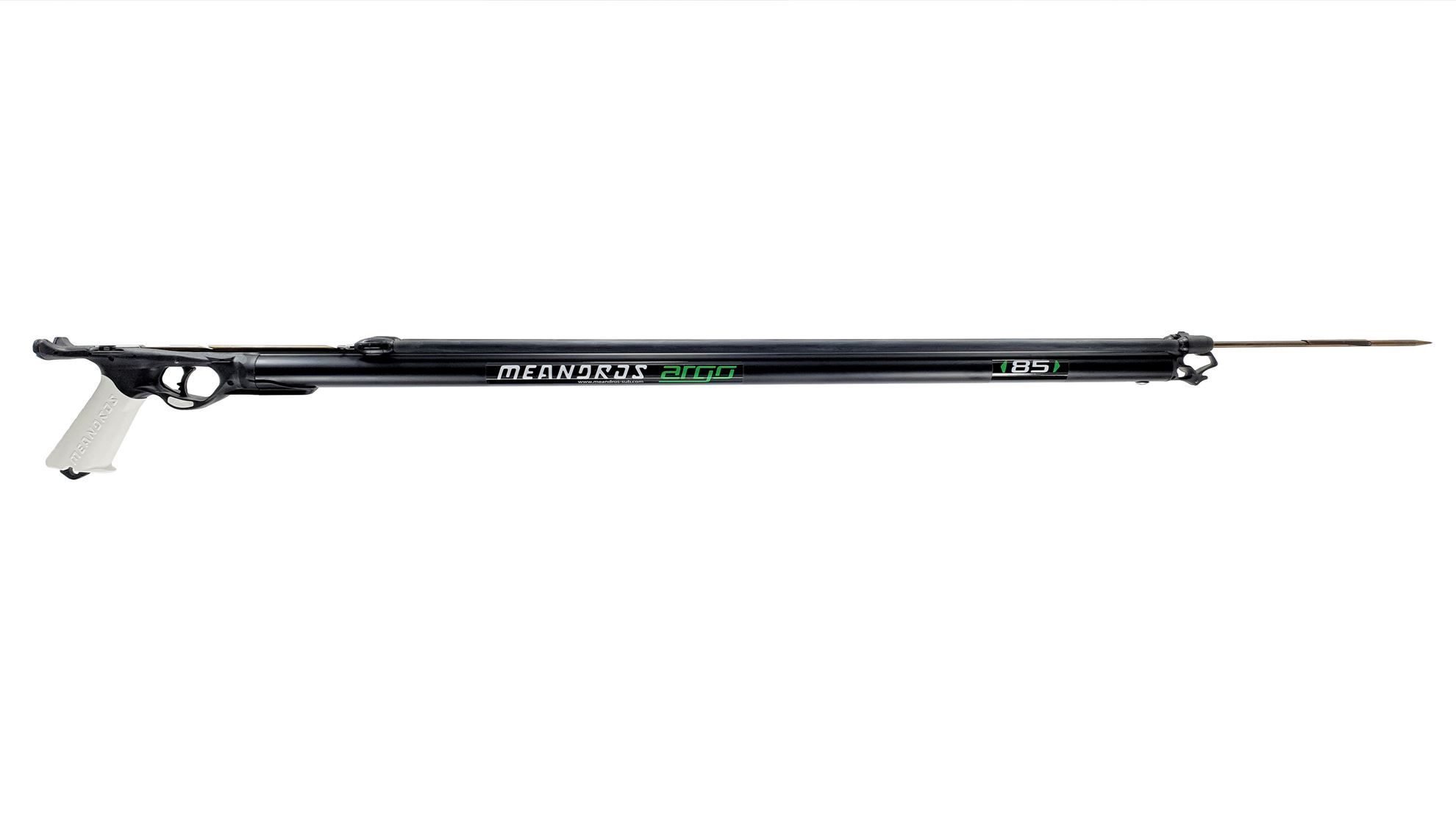

It is produced in lengths of: 85, 95, 105, cm.
